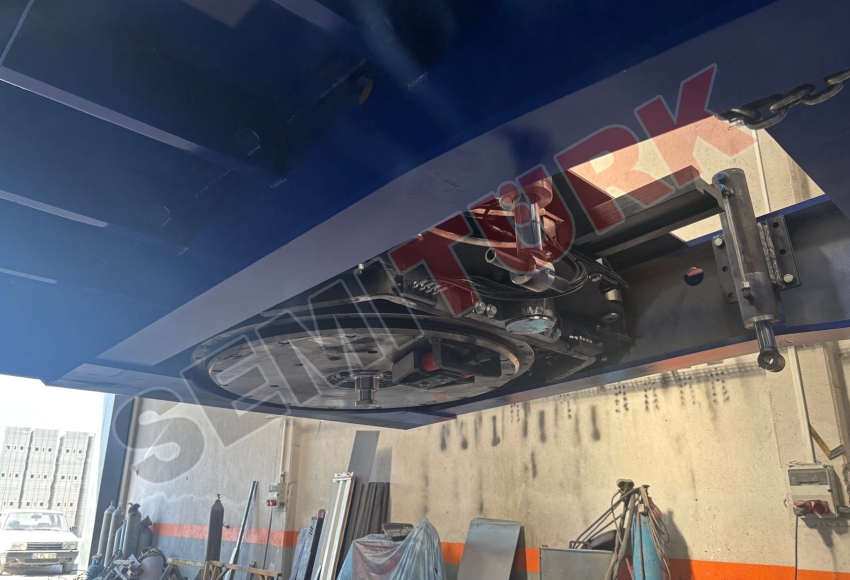

Product Name:	4 Axle Lowboy & Double Drop & Low Loader Semi-Trailer
Model:	STLB13HD02
Brand:	SEMITURK

---

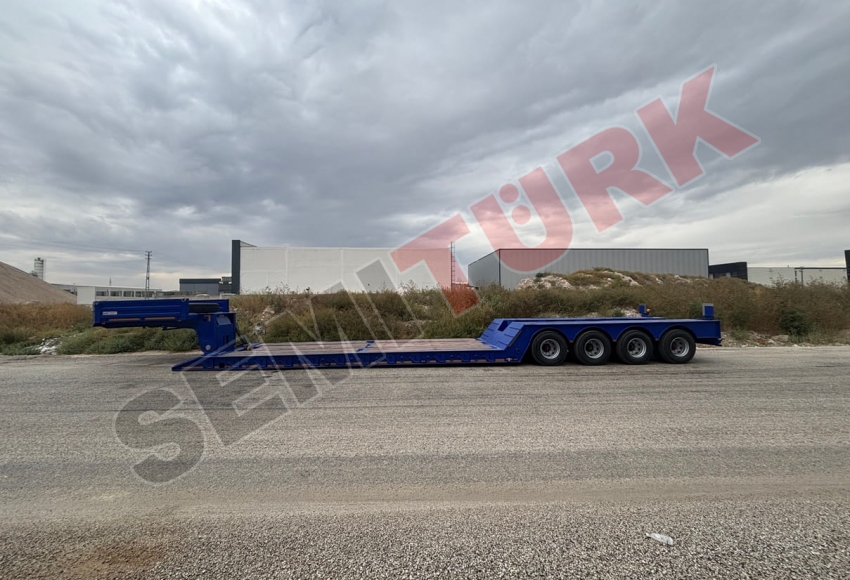

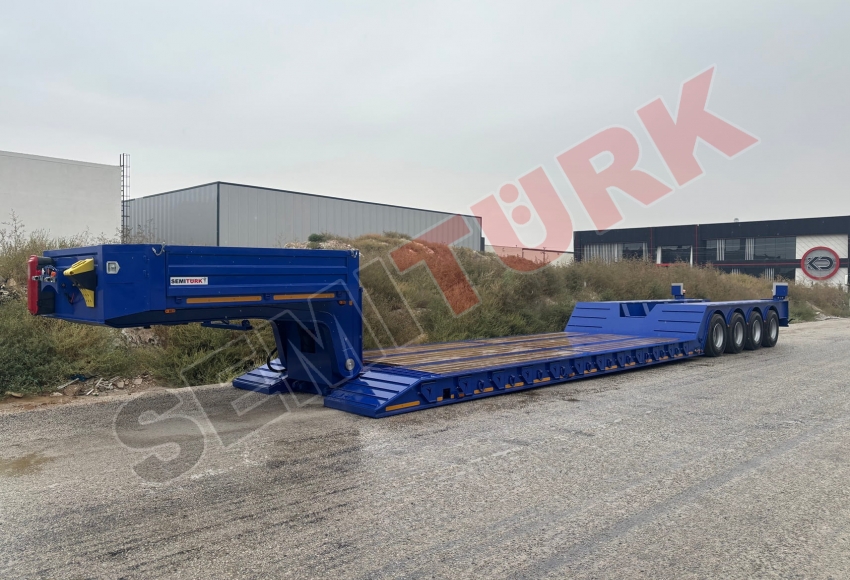

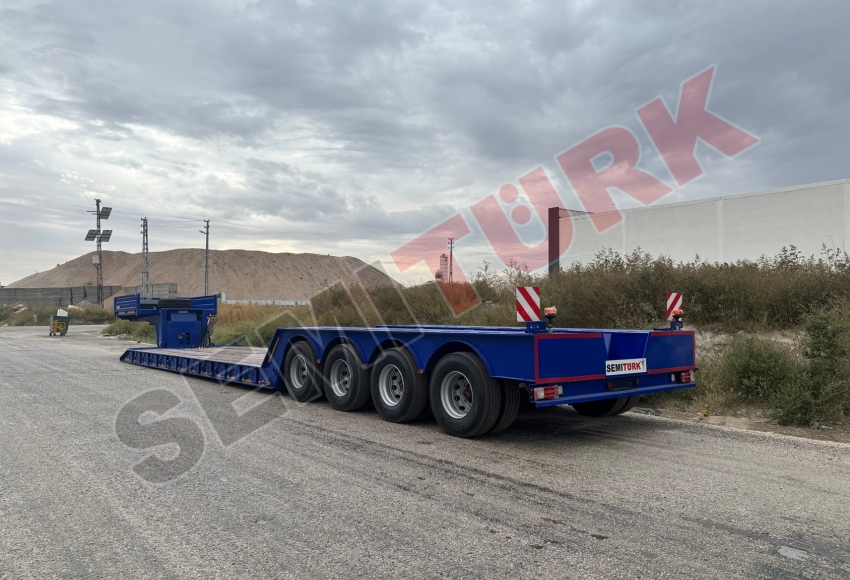

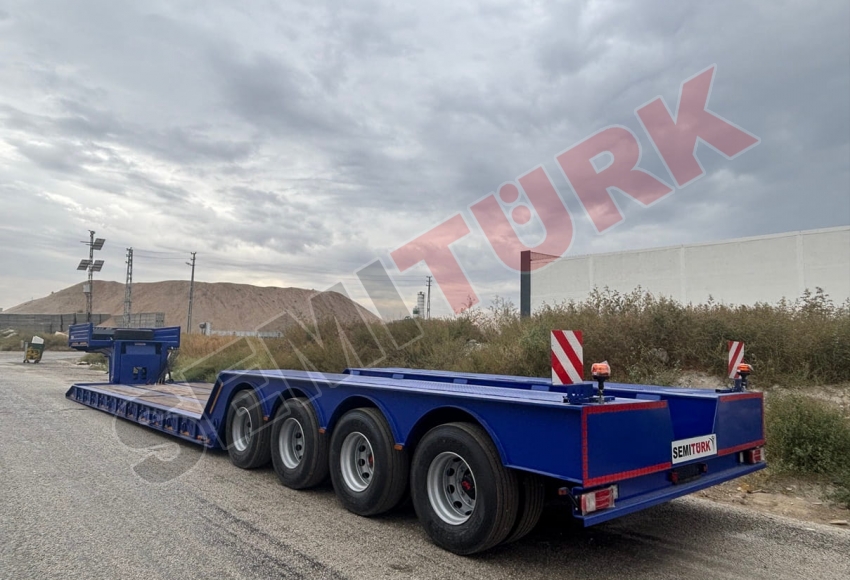

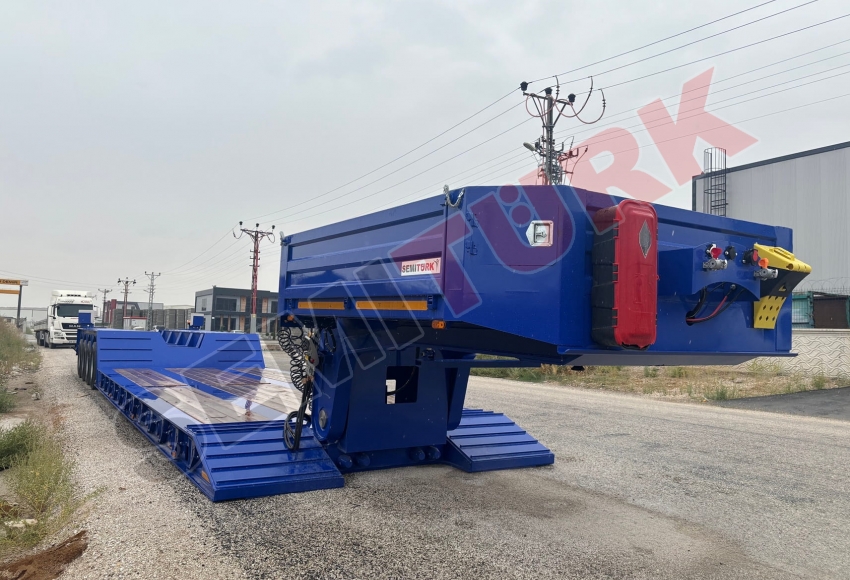

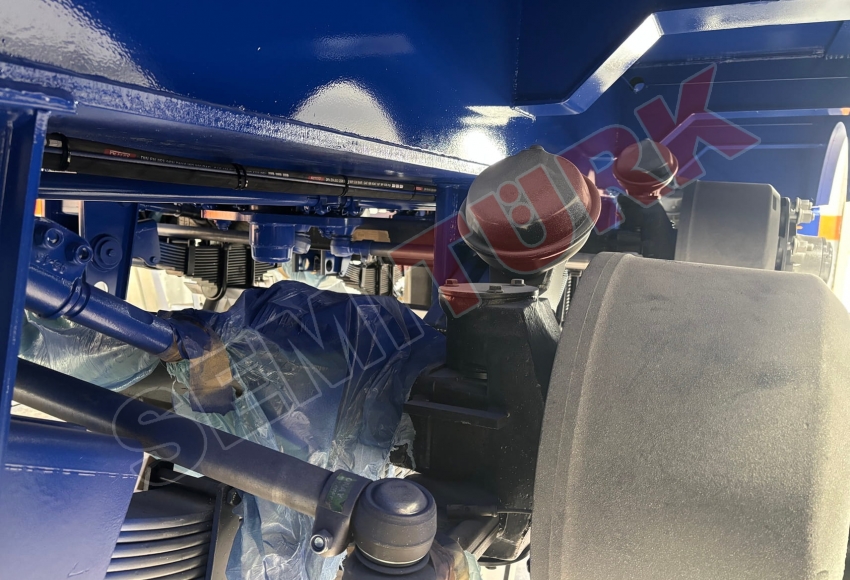

4 axle lowboy & double drop & low loader truck trailer (with options hydraulically or mechanical steerable axles and a detachable/removable gooseneck) is a front loaded semi-trailer (also called double drop float (RGN), double drop deck trailer or lowboy semi-trailer) that is designed for heavy haulage transportation of like huge excavators, heavy machinery and other all heavy equipment.

General technical details of “4 axle lowboy & double drop & low loader semi-trailer (4 Axle - 3 Axle Hydraulic Steerable - Hydraulic Controlled and Removable Gooseneck (RGN))”;

- Standard Product: 2500 mm (W) x 13600 mm (L) x 1610 mm (H) - Tare Weight ≈ 13 Tons ± %5

- Special Production: 3500 mm (W) x 19450 mm (L) x 1610 mm (H) - Tare Weight ≈ 25 Tons ± %5

* On semi-trailer design, heavy haulage equipment requirement and combination is taken into account

* "Buyer" is responsible for any problems that may arise due to non-compliance with traffic regulations regarding dimensions and specifications in special productions

- Chassis is produced from “ST52-3 or optional S700MC” sheet

- Floor sheet 7/8 mm chequered sheet or optional 8 mm sheet metal

* Optional middle removable wood parts / 5-8 cm thickness

- Inside / side reinforced chassis cross-members designed taking into account the customer usage

- Reinforced structure design of heavy haulage connection points (if it is necessary) or optional ro-ro rings as a standard

* For more information, please review the offer and technical drawing of product

Optional Details:

- Design with any specifications and sizes to compatible with project requirement or usage

* Please take into account local and/or international traffic regulations

* Tare weight varies depending on design combinations

- Reinforced special chassis design and trailer undercarriage combination for heavy loads

- Mounting stand design and production (if required in the project)

- Other compatible axle, tire and suspension system combinations

- Other design options and combinations with optional features

* Please contact with us for any information
